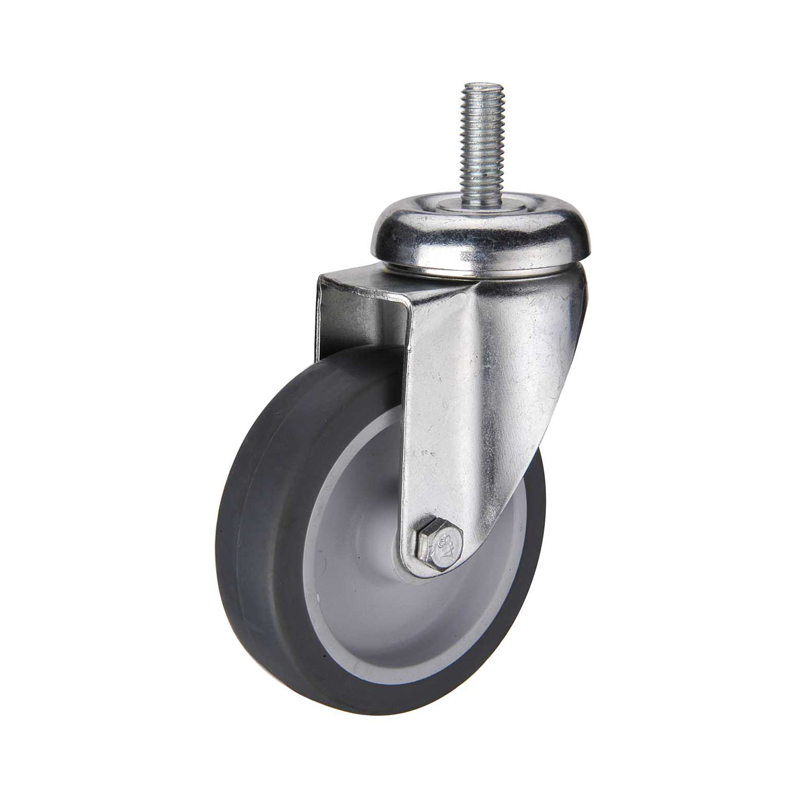

European type threaded stem swivel caster 5 inch


Made of pressed steel, zinc plated.
Double ballrace swivel head.


Material: Thermoplastic rubber
Hardness: 80±5 Shore A
Bearing type: Plain bearing
Temperature: -20°C~80°C


(mm)


						Wheel

						Diameter

						Overall

						Height

						Caster

						Type

						Top

						 plate

						Hole

						Distance

						Hole

						Dia

						Wheel

						Material

						Weight

						Capacity





					Item No.




















					W36060TPR


					60x22


					89


					Bolt hole double brake


					60x60x2


					45x45


					6.3


					TPR


					50 KG




					W36080TPR


					80x22


					108


					Bolt hole double brake


					60x60x2


					45x45


					6.3


					TPR


					60 KG




					W36100TPR


					100x27


					134


					Bolt hole double brake


					76x70x2


					60x50


					8.3


					TPR


					70 KG





					W36125TPR


					125x27


					158


					Bolt hole double brake


					76x70x2


					60x50


					8.3


					TPR


					80 KG



Feature of threaded stem casters for chairs:
- Type available: Swivel / Fixed / Double brake / Bolt hole (with brake) / Threaded stem (with brake).
- Silent thermoplastic rubber material, widely used for indoor products.


Other option of threaded stem caster 7/16:
Without thread guard
