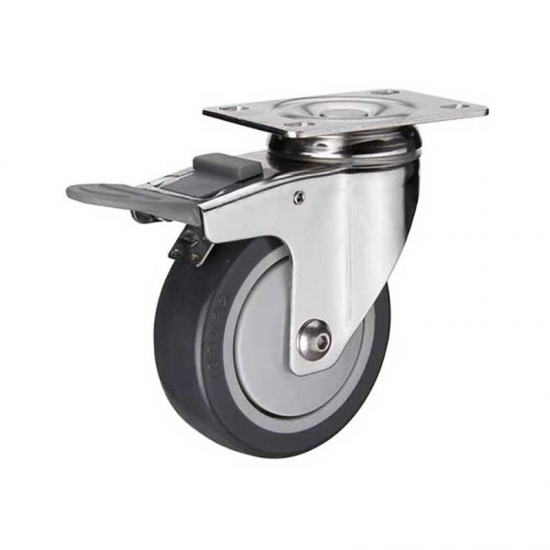

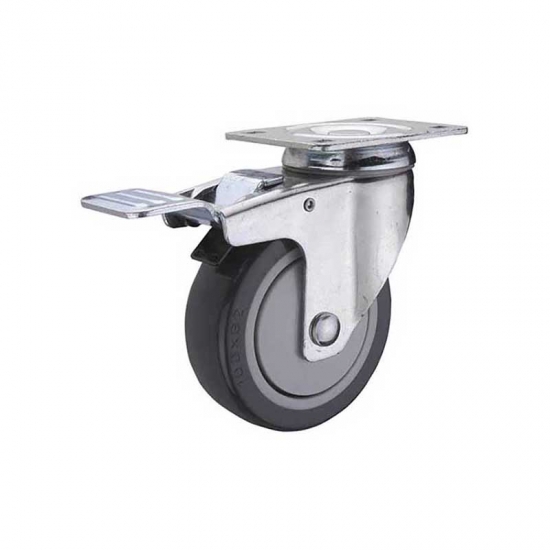

150 Kg polyurethane double brake stainless steel caster

	Housing:
Made of pressed stainless steel
double ballrace swivel head
transparent dust-proof seal




	Wheel:
Material:Polyurethane
Hardness:90±5 Shore A
Bearing type:Precision ball bearing
Temperature:-20℃~80℃


(mm)
| Item No. | Wheel Diameter | Overall Height | Caster Type | Top plate | Hole Distance | Hole Dia | Wheel Material | Weight Capacity |
| W28075SSPUB2/3 | 75X32 | 104 | Side brake | 95X67X3 | 73X45 | 11X8.5 | PU | 100KG |
| W28100SSPUB2/3 | 100X32 | 132 | Side brake | 95X67X3 | 73X45 | 11X8.5 | PU | 120KG |
| W28125SSPUB2/3 | 125X32 | 158 | Side brake | 95X67X3 | 73X45 | 11X8.5 | PU | 150 KG |

Feature :

- Polyurethane caster wheels are very quiet and slip resistant.
- Total Lock brake solidly locks both the swivel and wheel, double locking is safety and convenient.
- These medium-duty casters come with a zinc finish.




	Double brake PU casters ,apply to  for light and medium duty material handling, carts, equipment, and shop projects.
