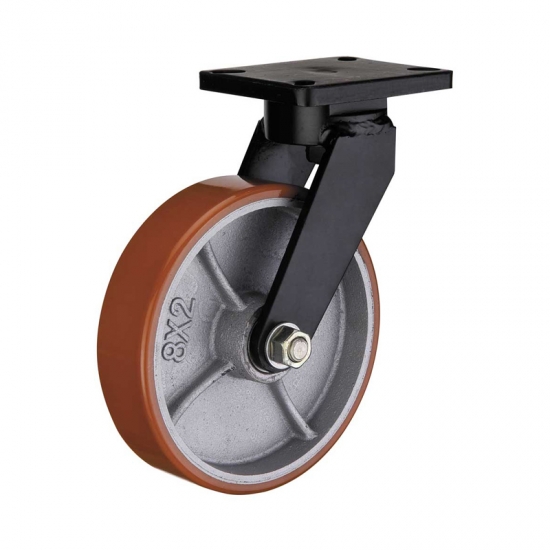

Cast iron polyurethane heavy duty industrial casters
Housing:
Solid steel welded constructionDouble ball bearing housing
Black painted
Wheel:
Materials: Cast iron Polyurethane
Bearing type: Precision double ball bearing
Hardness:90±5 Shore A
Temperature range: -20℃~80℃
	(mm)
						Top

						 plate

						Hole

						Distance

						Wheel

						Material






					Item No.


					Wheel Diameter


					Overall Height


					Caster Type






					Hole Dia




					Weight Capacity




					W90100BCPUSW


					100*50


					168


					Swivel


					135x110x12


					110/100x80/70


					19x12


					PU


					400 KG




					W90125BCPUSW


					125*50


					191


					Swivel


					135x110x12


					110/100x80/70


					19x12


					PU


					500  KG




					W90150BCPUSW


					150*50


					216


					Swivel


					135x110x12


					110/100x80/70


					19x12


					PU


					800  KG





					W90200BCPUSW


					200*50


					266


					Swivel


					135x110x12


					110/100x80/70


					19x12


					PU


					1000  KG


 Feature :
- Plate with four drilled holes for bolting or welding to a flat surface
-
		Wheel with PU material  and steel core for strength and protection of floor surface

- Swivel mechanism for enabling wheel to make a 360-degree change in direction

Similar product :







Heavy duty industrial wheels is widely used in utility trucks, trash containers, production dollies, and other industrial applications
