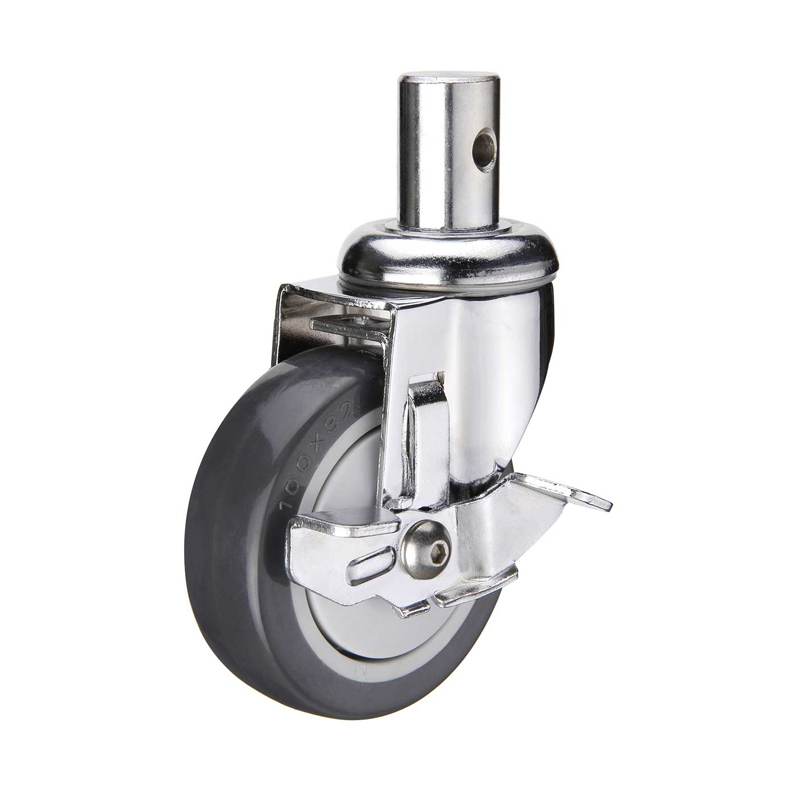

3" 4" 5" insert stem PU swivel caster with side brake

This is medium duty insert stem side brake PU swivel caster good for industrial trolleys.

Style:Side Brake

Size available :3" 4" 5"

Load Rating: 60kg 80kg 120kg

insert stem PU swivel caster with side brake


  • Item no.:

    W004XXXPUSB1
  • Product origin:

    China (Mainland)
  • Color:

    Gray
  • Min order:

    1000
  • Shipping port:

    Guangzhou
  • Lead Time:

    7-10 working days
  • Product Details

3" 4" 5" insert stem PU swivel caster with side brake


Housing:
Made of pressed steel,zinc plated.
doubleballraceswivel head
transparent dustproof seal


Wheel:
Material:Polyurethane
Hardness:90±5 Shore A
Bearing type:Precisionball bearing
Temperature:-20℃~80℃


Product Description:

The grey casters are made of polyurethane wheels, one of the popuplar material with features of strong abrasion resistance, silent shock absorber, wearproof, no marking and impact resistance of the whole caster.
The single precision bearing helps the wheel roll mute & smoothly. The caster can rotate at ease, due to it's double bearing raceways. Plastic bearing hubs help prevent dust and silk intrude inside the core - thus increase its lifetime.
These polyurethane caster wheels equiped with 360 degrees swivel bracket, the wheels can turn to any directions. Smooth and Silent and Sturdy.




Specifications:

Wheel diameter: 75/100/125 mm
Wheel width: 32 mm
Total height: 105/130/155 mm
Load capacity: 90/100/135 kg per wheel
Wheel tread: PU
Mounting plate size: 93 mm x 62mm
Fixing holes distances:72 mm x 45 mm
Bearing type: Ball bearing
Color: Gray
Features: PU Wheel, Gray Wheel, Side Brake Wheel, Industrial PU Caster Wheel, Stem Wheel
With brake: Side Brake

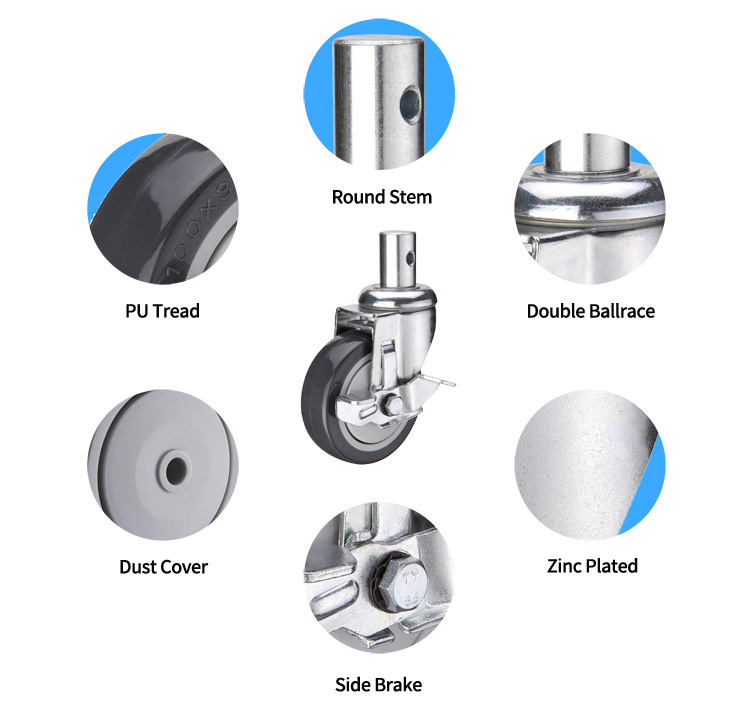

Details Of Stem PU Casters:

Application Of Swivel PU Casters:

Good chooice to move the light furniture, table, cabinet and equipment to the destination more easily and flexibly.

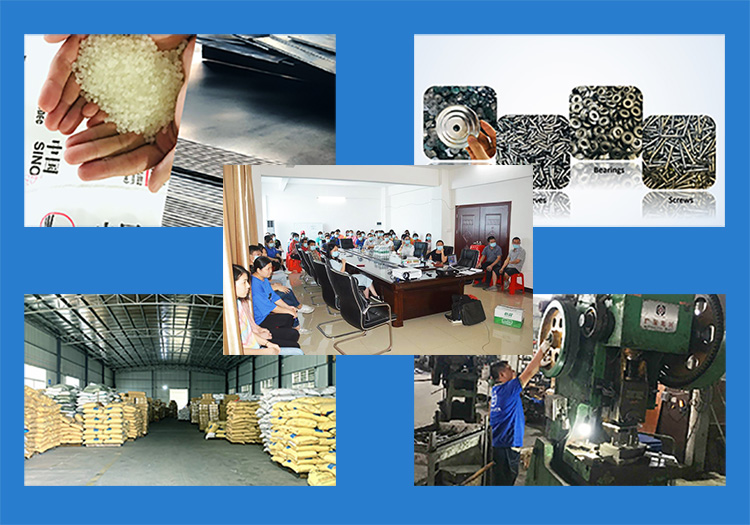

Quality Control Of Stem PU Caster


1. Source control-select branded raw material suppliers for cooperation

2. Material storage-stored in an independent warehouse with suitable conditions

3. Equipment maintenance-periodic maintenance of equipment

4. Employee training-regular education and training on employee awareness and skills


Our Features:

One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
